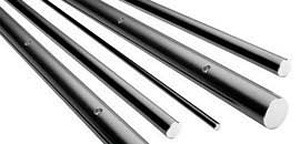

超輕鋁合金LinearRace導向軸

Thomson超輕鋁合金LinearRace導向軸是滑動軸承應用中標準Thomson 60 Case的輕量化替代品。除了重量輕65%的優點，超輕鋁合金導向軸還具有超強耐腐蝕性，適用于水洗和水下環境（相較于大多數隨時間銹蝕的鋼質導向軸）。作為非磁性材料，鋁合金導向軸是醫學影像應用的理想選擇。

產品介紹

讓 Thomson 幫您選擇！

FluoroNyliner®襯套軸承推薦 >
超輕鋁合金導向軸手冊 >
Linear MOTIONEERING®；直線導軌部件選型工具 >

超輕鋁合金導向軸規格：

標稱直徑	選型	直徑公差		長度公差	每英寸重量
標稱直徑	選型	最小值	最大值	長度公差	每英寸重量
1/4	實心	0.2488	0.2496	+/- 1/32	0.005
3/8	實心	0.3738	0.3746	+/- 1/32	0.010
1/2	實心或預鉆孔	0.4988	0.4996	+/- 1/32	0.019
5/8	實心或預鉆孔	0.6238	0.6246	+/- 1/32	0.030
3/4	實心或預鉆孔	0.7488	0.7496	+/- 1/32	0.043
1	實心或預鉆孔	0.9988	0.9996	+/- 1/32	0.077

超輕鋁合金導向軸優點：

6061-T6鋁合金，帶硬度HRC 70的陽極氧化鍍層
圓度小于0.000080，錐度0.0001（最大值）
表面光潔度16 Ra（最大值）
最大訂購長度為120”

直線度：每英尺最大累積誤差0.001（0.002 TIR）
非常適合用于Thomson FluoroNyliner襯套軸承
可提供特殊加工
根據要求提供公制尺寸
